RF Deck - Anode Side Components

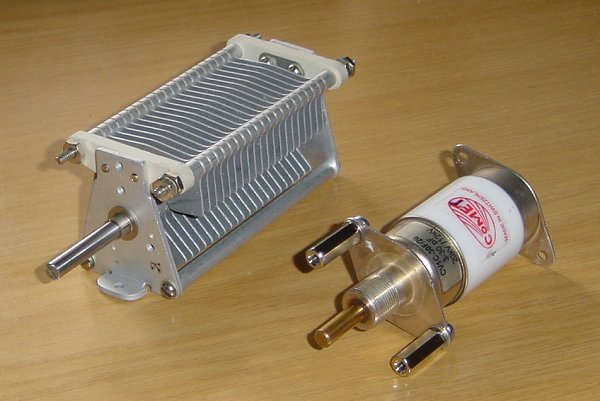

VC3 and VC2 output tuning capacitors
(VC3 needed to be less that 5" long!)

An ordinary variable capacitor was chosen for the loading capacitor as it was significantly lighter than an equivalent vacuum variable. Vacuum variables can be bought off ebay or from US companies like Surplus Sales in Nebraska.

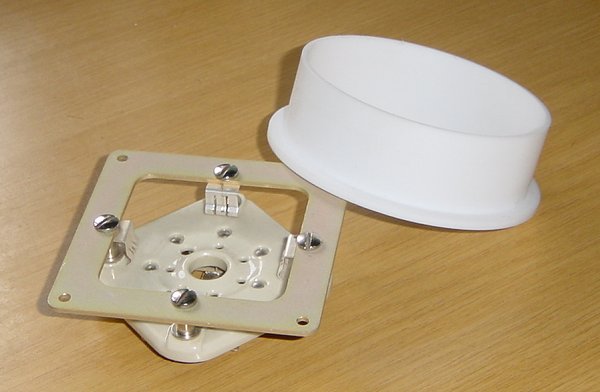

The 8877 base and chimney

These can be bought from Surplus sales, although I obtained mine from a German amateur who had just bought them from the USA - via ebay!

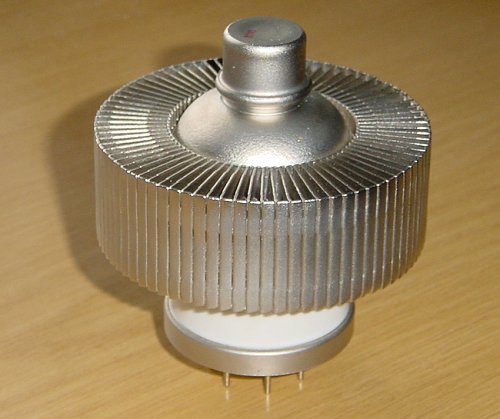

8877/3CX1500A7 valve & specification

Again, you will need to search for an 8877 but they are readily available second-hand in the USA. I found mine on a news group.

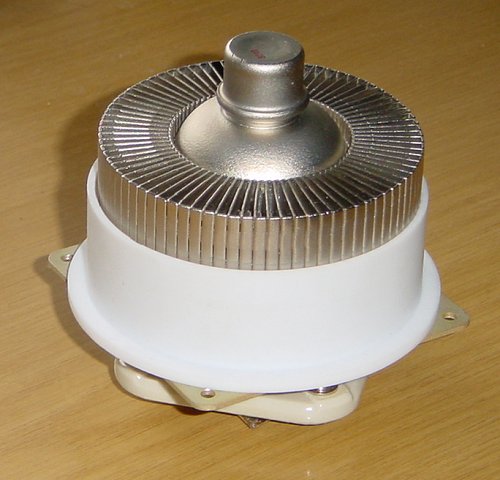

The 8887 valve, base and chimney assembled

Neat huh?

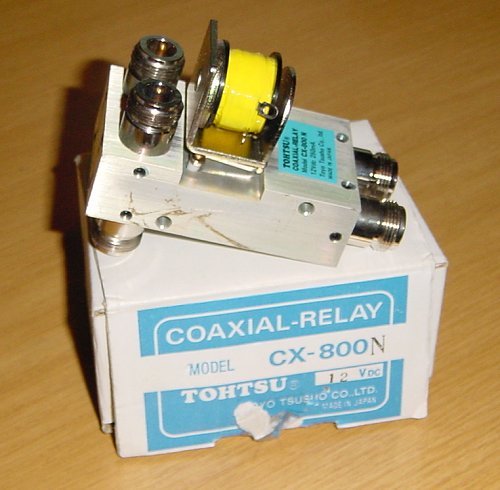

The Tohtsu coaxial antenna change-over relay

It is possible to use a pair of vacuum relays if you can get hold of a pair. I bought mine from a 6m ham in Belgium.

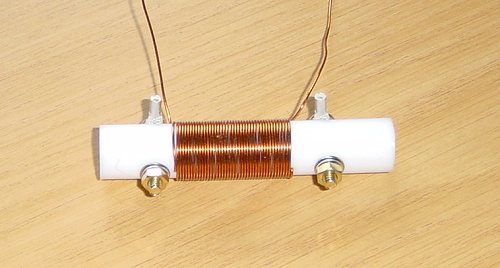

Anode HT choke

The HT choke is made from 50-turns, 22swg, close wound on a 85mm length of 20mm PTFE.

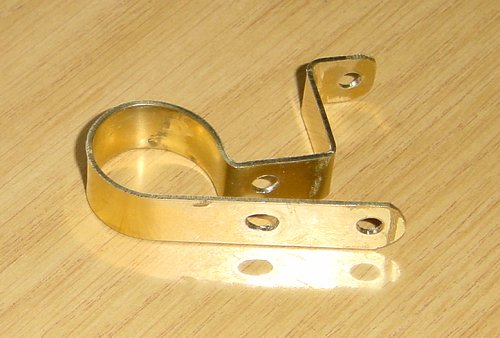

Brass anode connector

The anode clip is made from a 10mm wide strip of brass and is silvered..

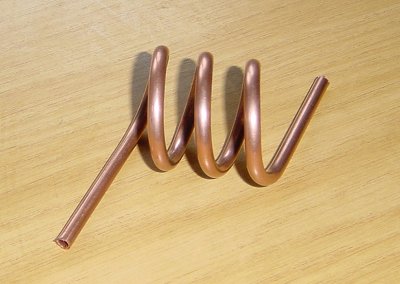

L3, anode coil

The anode coil is made from 1/8" pure copper tube and consists of 3-turns, wide spaced, 32mm dia (silvered)

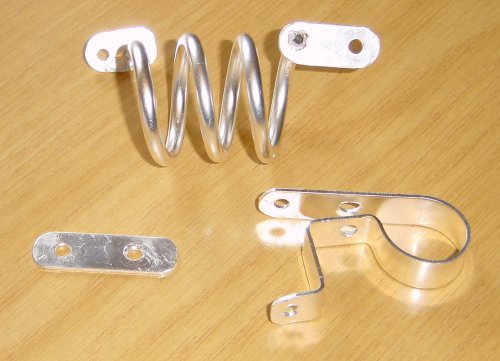

Silvered anode assembly

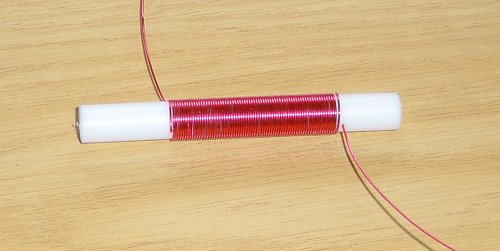

Output safety choke

The output safety choke is approximately 60-turns 22swg, close wound on 85mm length of 8mm PTFE rod.

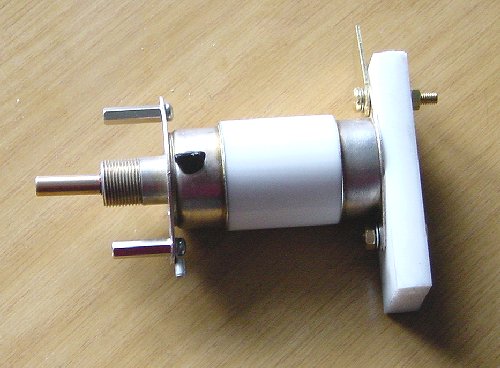

Output tuning capacitor assembly

The tuning vacuum variable is mounted on a 10mm thick piece of PTFE bar and is screwed to floor for rigid mounting.

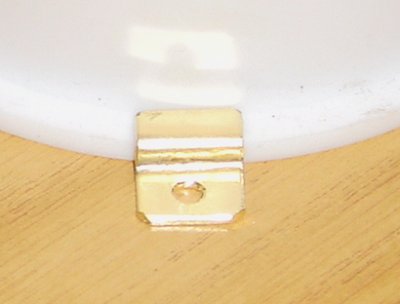

Four small clamps to hold 8877 chimney tight on the chassis

The 8877 PTFE is held down by four hand-made brackets made from 10mm brass sheet screwed down by m3 screws.

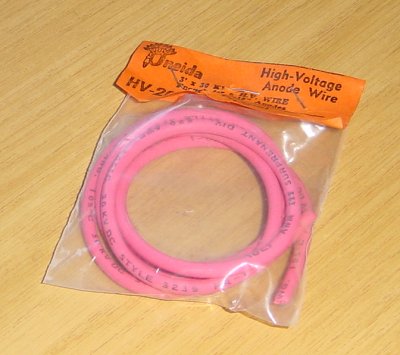

HV-20 HT cable

20kv / 30kV HT cable is available from RF parts in the USA.

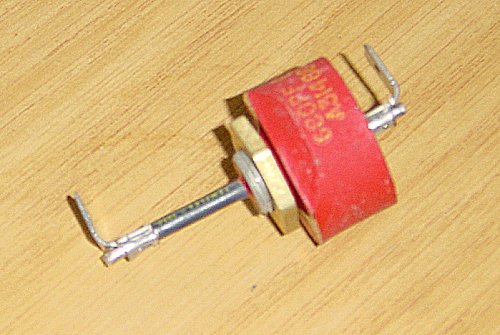

HT feed through capacitor

I obtained this feed-through capacitor from Peter Rodwell of Linear Amplifier UK.
