HT Divider / Monitor Board
One of the main sub assemblies in the amplifier is the HT capacitor board mounted in the anode compartment.

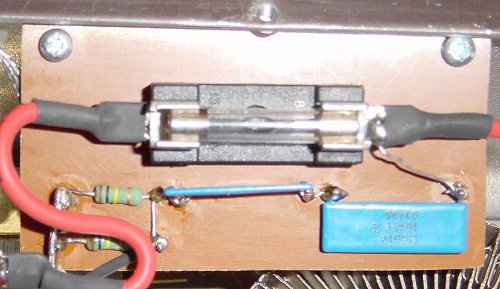

HT Divider / Monitor Board
The board contains the 2 amp HT line fuse and the divider resistors that supplies the +6v 'HT OK' signal to the control card. The blue components are
the 10M ohm @ 7,5kv resistors used instead of the 16 1Mohm resistors as stated in G3SEK's control board design. The two 100k resistors are connected to ground via an earth strap.
|
